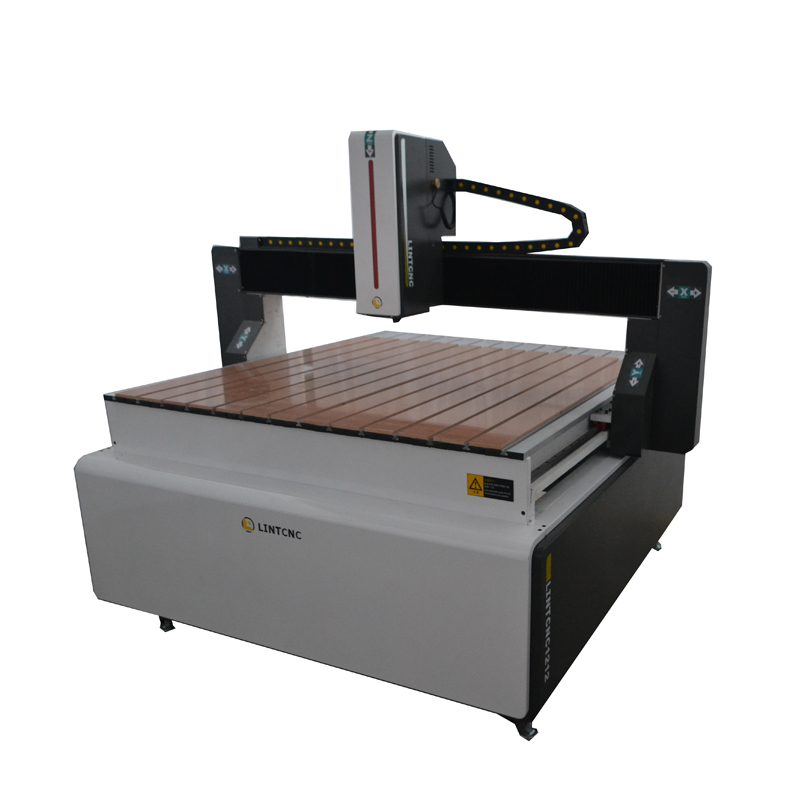

LT-1212

Technical Parameters

Model

LT-1212

Effective working area

1200*1200mm

Max.feeding height of Z axis

200mm

Whole structure

Welded

Table style

T-slot table with PVC

Guide rail

Hiwin linear square guide rail

Driving method

Taiwan Original TBI Ball screw

Spindle

1.5KW water cooling spindle

Collect size

ER16

Motors and drivers

86BYG-450B stepper motors and MA860H Leadshine drivers

Machine Accuracy

<0.03/300mm

Working speed

7000mm/min

Idling speed

7000mm/min

Operation language

G code plt,.mmg uoo,bmp

Working voltage

AC220V, Single Phase, 50-60Hz

Standard Software

Artcam 2010

Compatible software

Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD softwares

Environment temperature

0-45℃

Environment humidity

30%-75% No coagulate water

Too sensor

Yes

Optional parts

1. Rotary axis for engraving round materials(diameter 80mm)
2. Water tank for cutting and engraving soft metal
